High precision computer control, electric fence, digital ruler

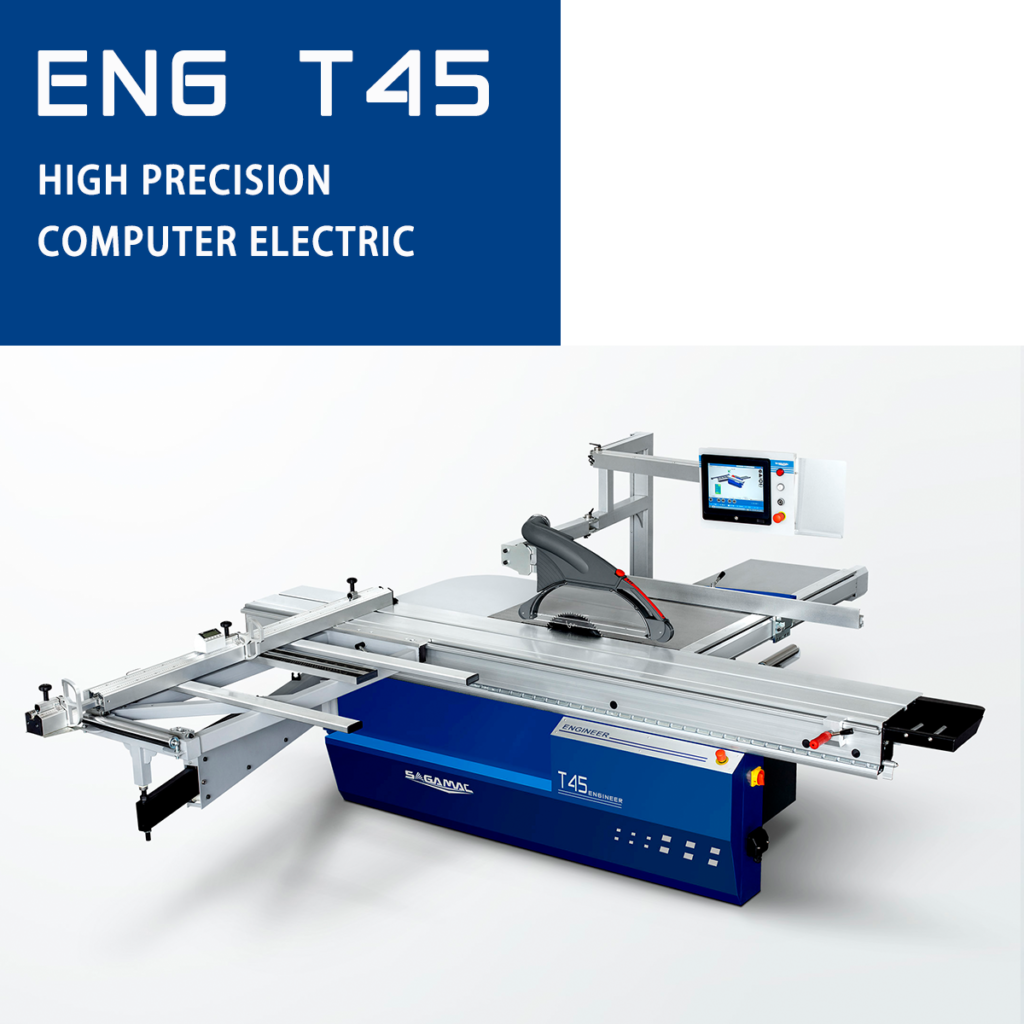

ENG T45 slidingtable saw

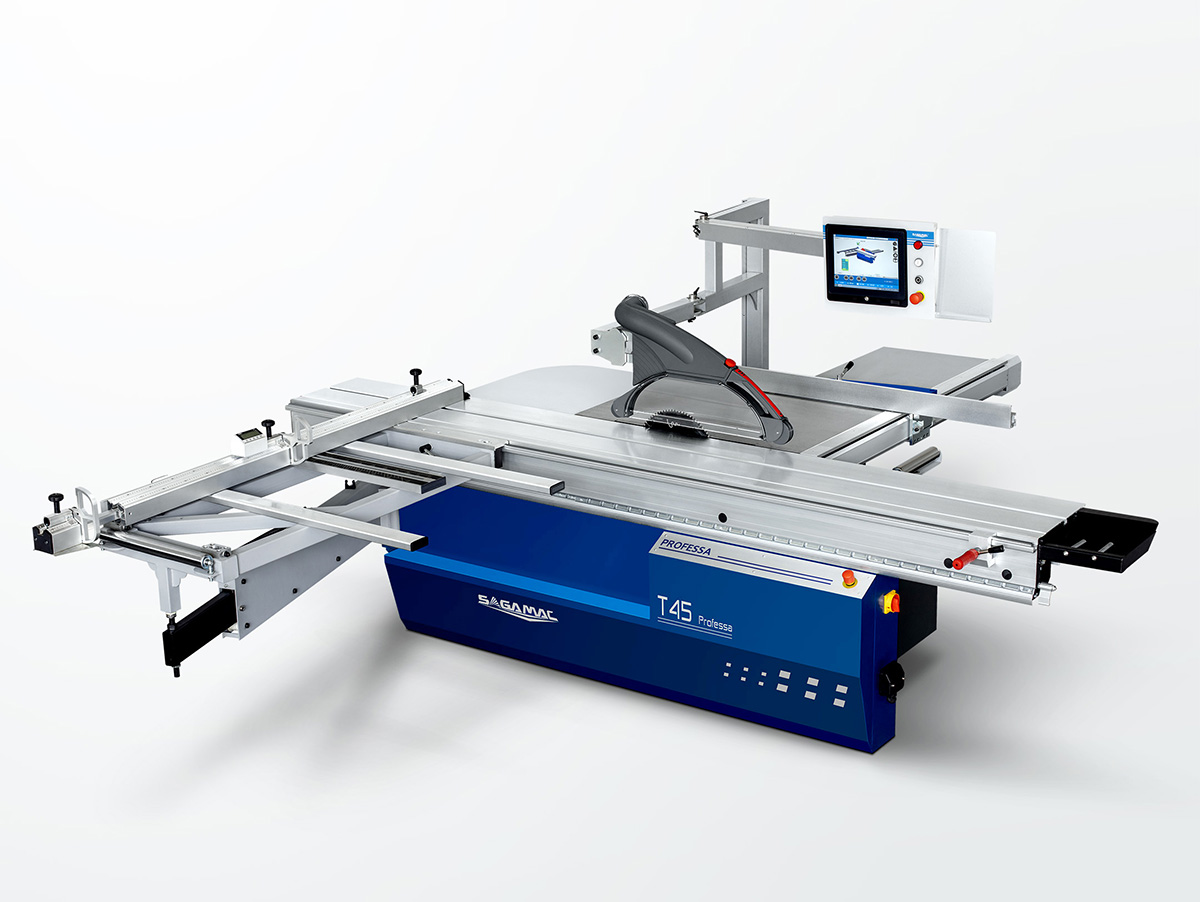

T45 Computer controlled Sliding table saw, from the first looking, it is a very large and heavy saw, indeed, it is, more than 1Ton Weight, makes it work very stable, solid cast iron saw mechanical system greatly reduce the vibration and makes it running super quiet. 3200（optional 3800mm）Large length table, 430mm width large width, double layer strength designed with building metal bar, with any position quick lock system to stop the sliding table for handling material or do maintain of machine. Rip cutting capacity up to 1300mm or even larger. Special strengthen design of machine body and arms, all meets or over than any international industry saw. Except the CNC controlled rip fence, the ENGT45 model got digital cross cut ruler, Professa T45 model ( even the cross cutting ruler is servo motor driven ) makes it a fully automatic, user can set all measurements on a touching computer interface, and certainly it can equipped with optimized cutting software and got G code printing function.

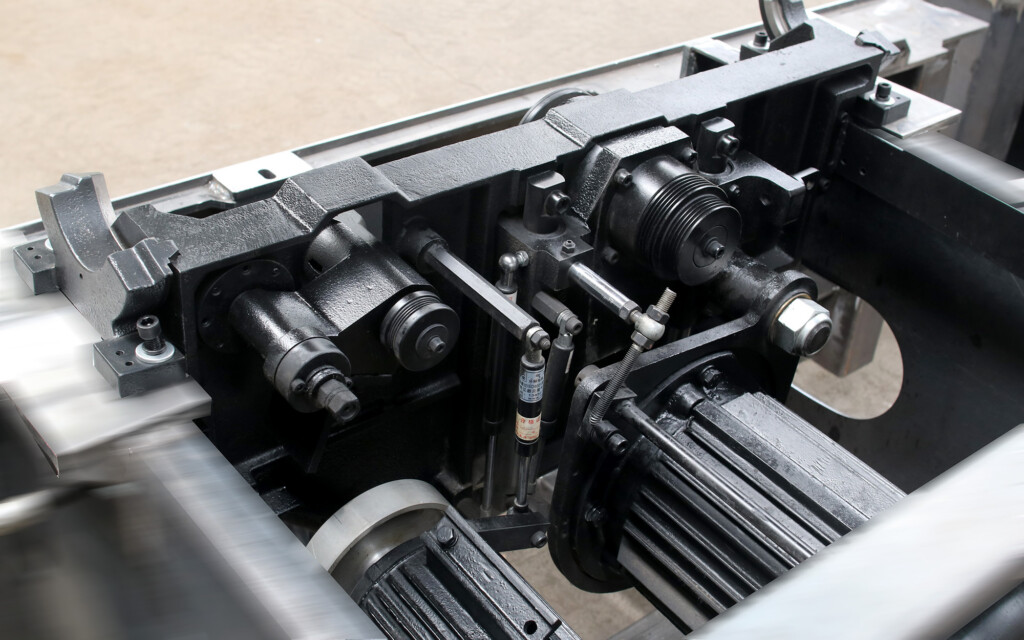

All SAGAMAC sliding table saw equipped with this professional saw system: integrate solid cast iron with strengthen frame which enable a max 210mm max cutting thickness, also makes running super quiet.
Professa T45 cross cutting ruler is double servo control gives you a high precision cutting length away from tedious manual setting
Servo motor drive rip fence up to 1280mm max cutting width（other width need customized）.
 |
 |
| Double layer professional 430mm heavy duty sliding table | Any position quick lock of sliding table |
 |
 |
| Professional industrial heavy duty saw system, solid cast irion vibration free | Suppotive feeding rollers for easy loading and protect the surface of material |
 |
 |
| Metal support arm rather than aluminum gives a so stable supportive even at far length | Strengthen side tables design to max 400kgs loading capacity |
|
|
|
|

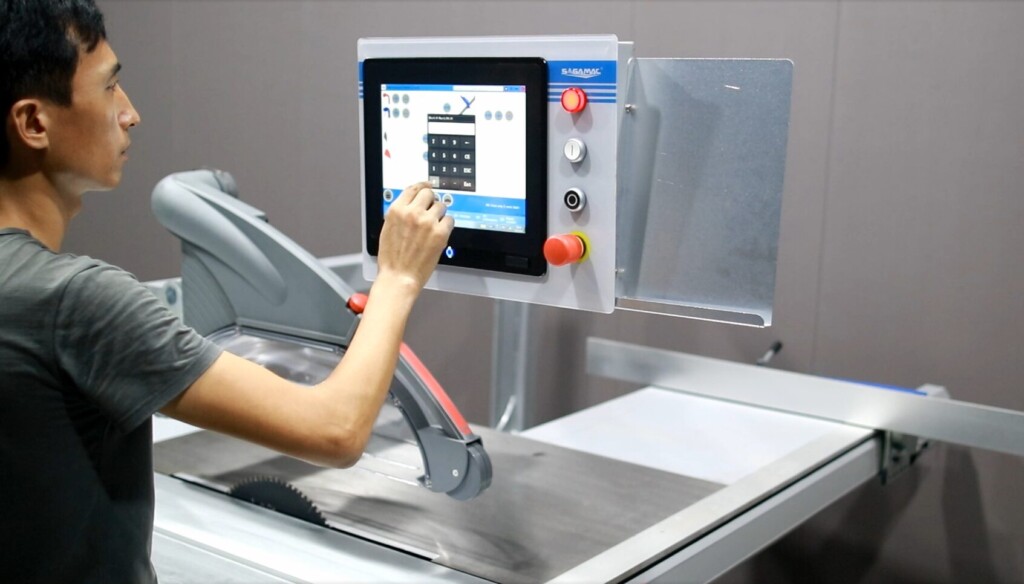

Industry touching scren windows programe, on time program for cutting optional optimized cutting software, accept universal format documents, connecting by USB, internet |
SAGAMAC Master cut program 2D or 3D immitation, software drive the cross ruler or rip fence to move automatically at automatic model, with printing function |
|
|
|
|
Zoom in and out function laser to pretect the eye and adjust length of laser line |
Very useful for defect cutting, ripping and also make cutting safe tells where the blade is |
|
|
|
|
Printing function for G code and information can be editable (may be different style printer with real machine) |
Scanning function for G-code to read information of panel(realy delivery may be different brand or style) |

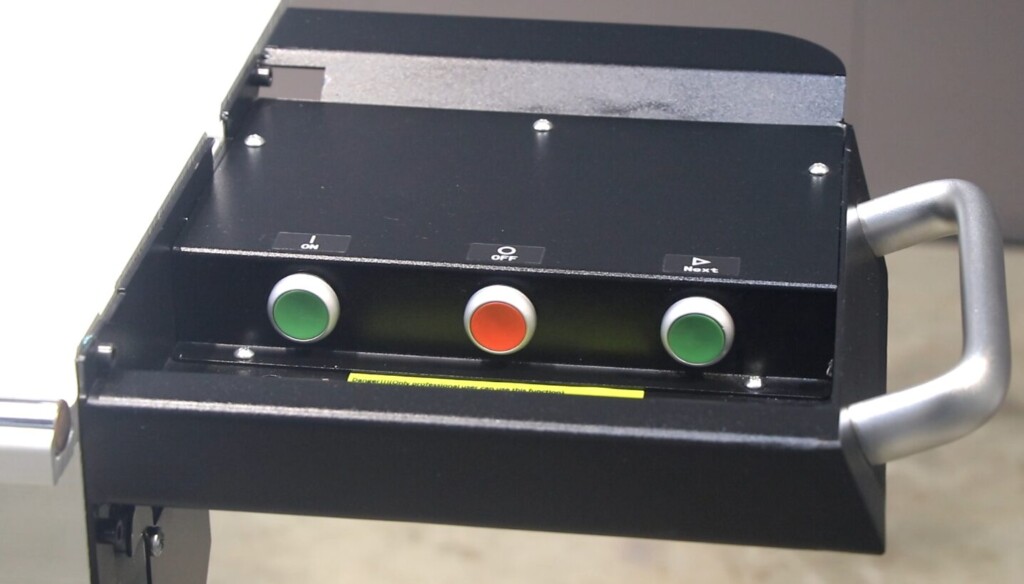

New functions remote control(wireless) gives a easy access to stop or start the saw and even can help to process the function from software when do automatic cutting
| Max cutting thickness | 210mm |
| Blade size | 280-600mm |
| Max cutting width | 3200/3670/3800mm |
| Power of main saw | 5.5/7.5kW |
| Speed of main saw | 4000/5000rpm |
| Speed of scoring saw | 8200ropm |
ENG T45 sliding table saw Catalogue download here
