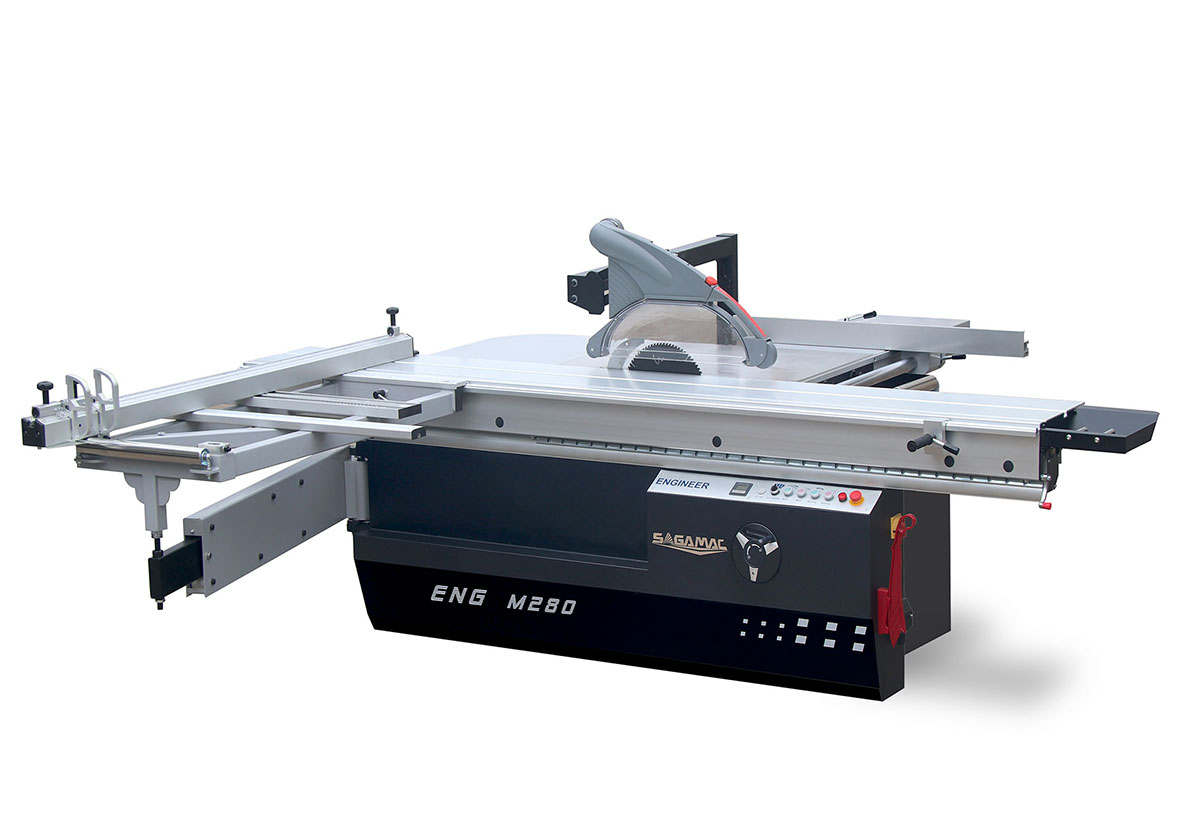

SAGAMAC ENGINEER SERIES M280 Sliding table panel saw

-High performance world class industrial saws

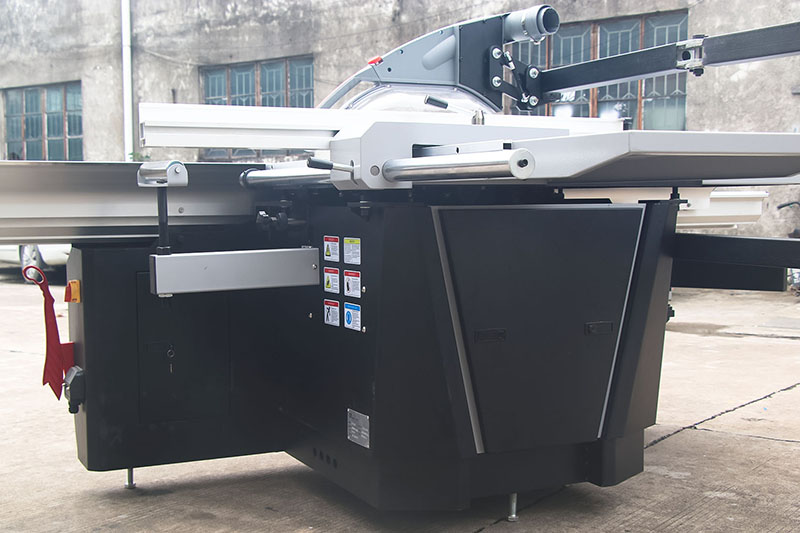

ENG M280 is a large industrial heavy duty sliding table saw with a style of its own, the high performance makes it have a seat

among international famous saws.

Professional solid cast iron mechanical saw system with cross strengthen frame is the most outstanding features of this saw,

which can be seen only at world top class saws. max 600mm diameter can be install and up to extremely 210mm cutting thick

ness is a reflection of a tough working saw. 3200mmby 430mm double layer table with strengthened metal bar with any step

lock function, metal supportive arms rather than aluminum gives a very extreme stable supportive of side table and smooth

easy sliding for a 250kgs heavy materials.

M280 sliding table saw standard fitting with overhead dust collection cover, manual tilting with digital display, electrical blade

lift and optional electrical tilting functions, optional 3800mm sliding table and 7.5kW=10hp big power main spindle.

Flexible optional fittings like digital or micro adjust ruler, digital rip fence, remote start of main and scoring blade, ruler geometric

cutting, lasers etc to meet various needs of using conditions.

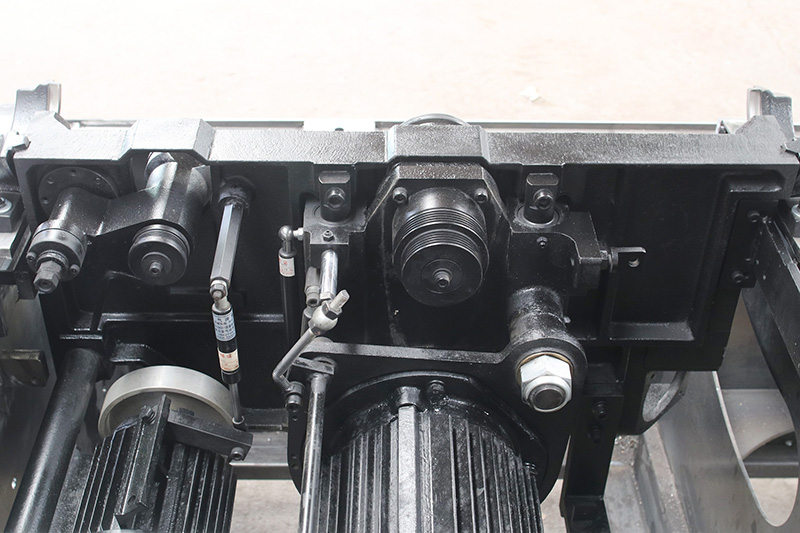

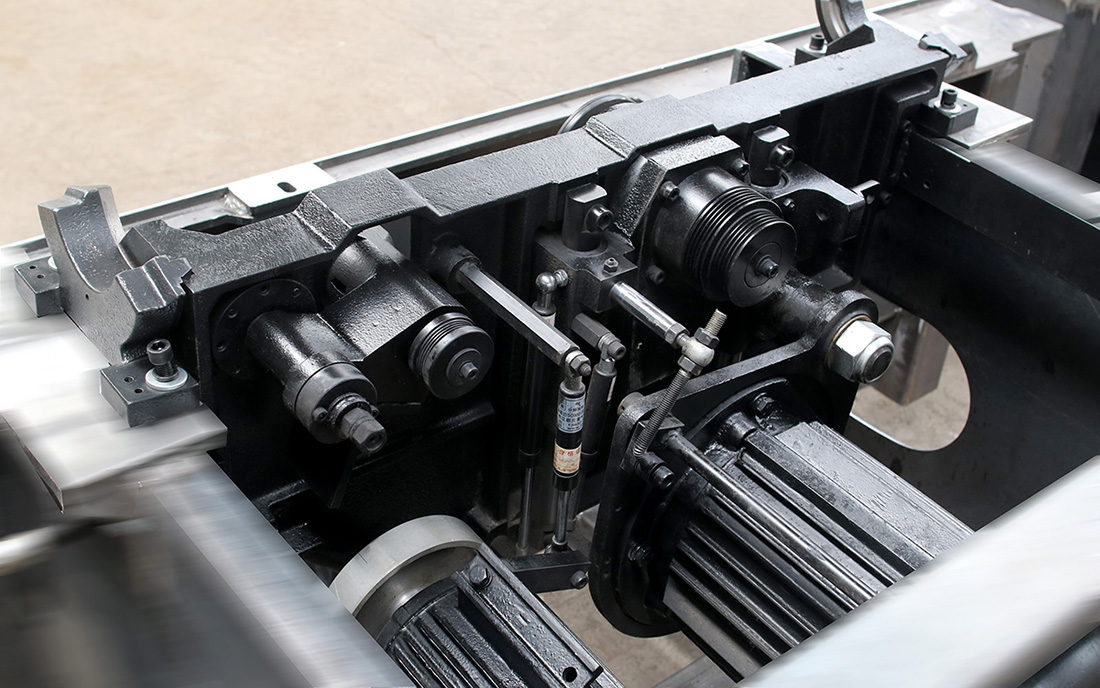

Saw mechanical system is installed on a integrate whole piece of annealing treated solid cast iron plate with professional strengthen frames which makes the whole system vabration free even under very tough cutting work, the whole cast iron installation plate is is processed at a large metal cnc machine to make sure the tilting is guiding on a absolutely precise base.

Highlights of ENG M280

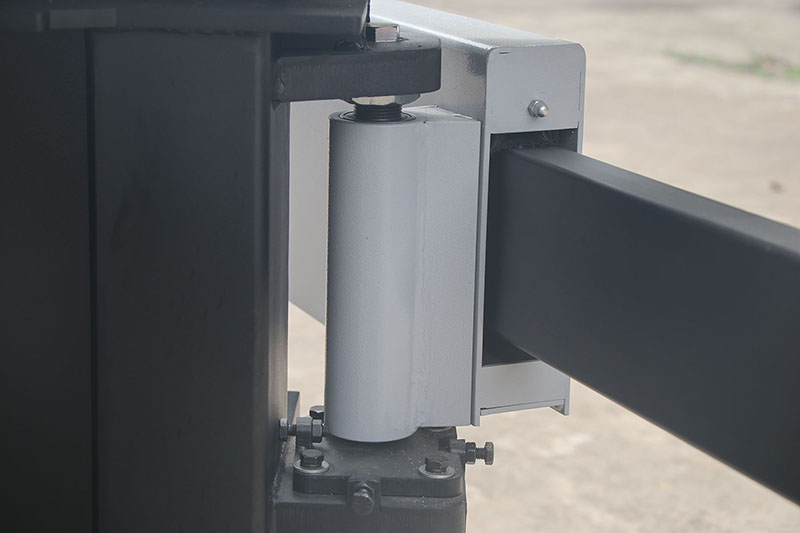

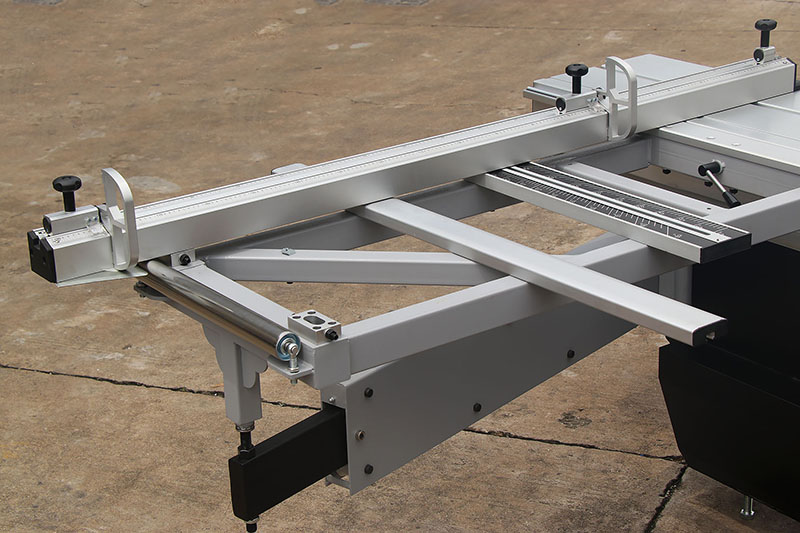

Over strengthend side table 250kgs loading capacity, extrem heavy duty	Heavy duty 30mm bore arm hing with metal extension arms rather then aluminum to give stable supportive even sliding table move to extrem end

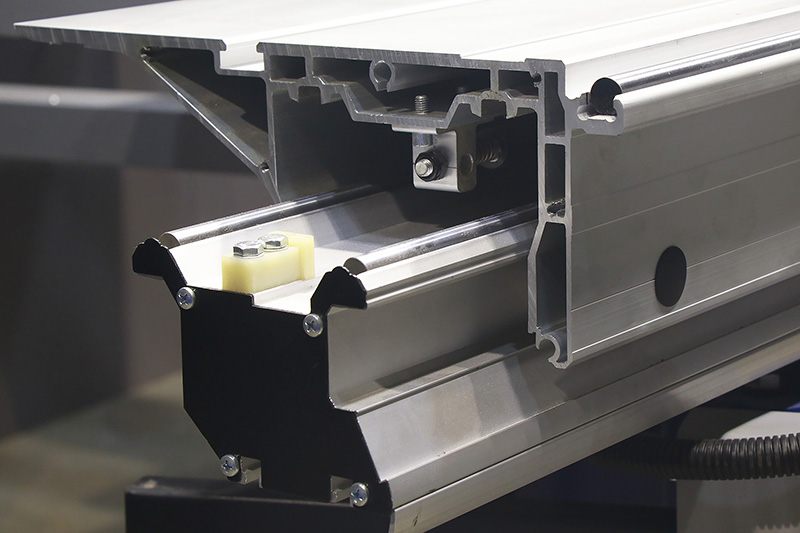

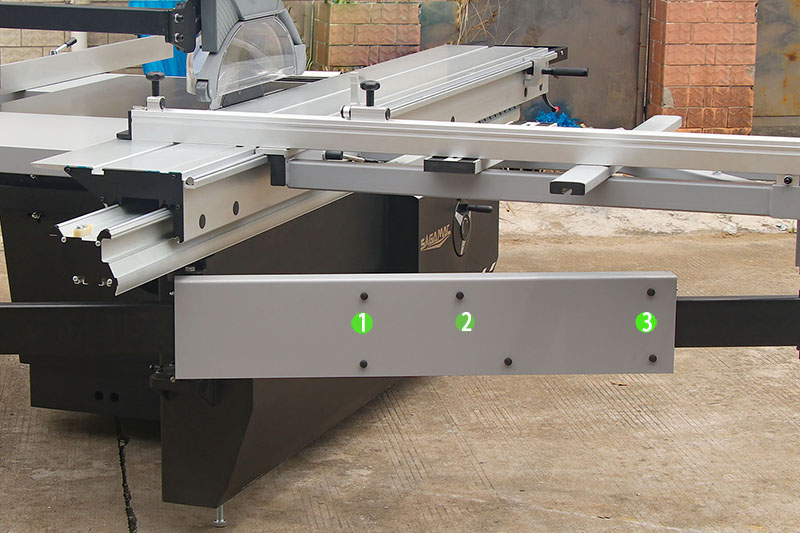

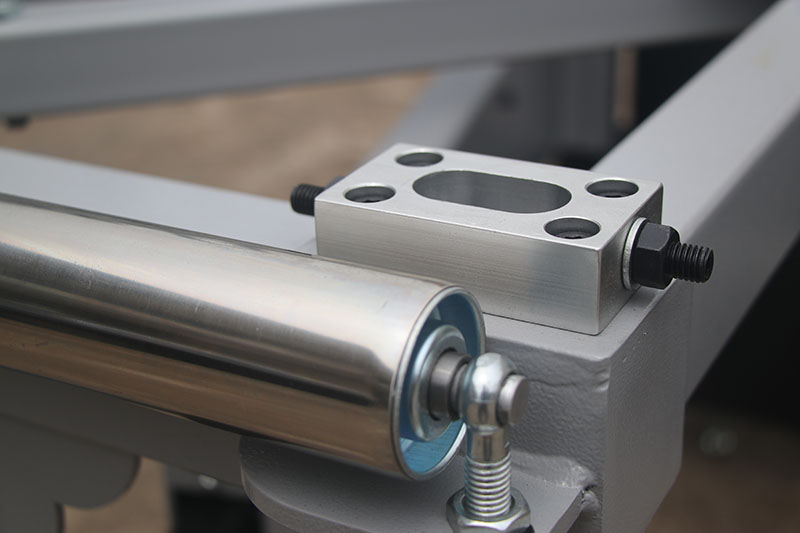

3 sets of guiding roller system combine prolong metal arms is another secrete of SAGAMAC saw sliding more stable and works life long	Double layer metal bar strengthed sliding table big width 430mm to meet any tough works

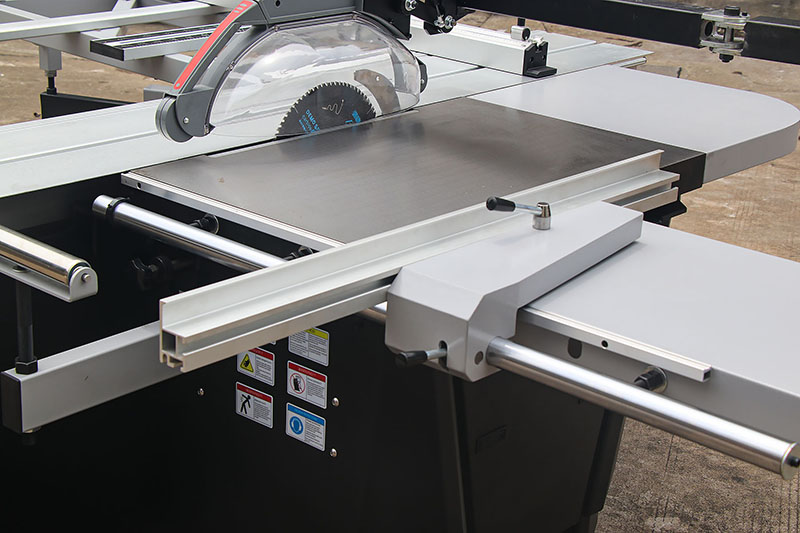

State of art design machine body, whole machine fully equipped is up to 1 Ton (1000kgs)weight	Big sized cast iron table heavy duty rip fence

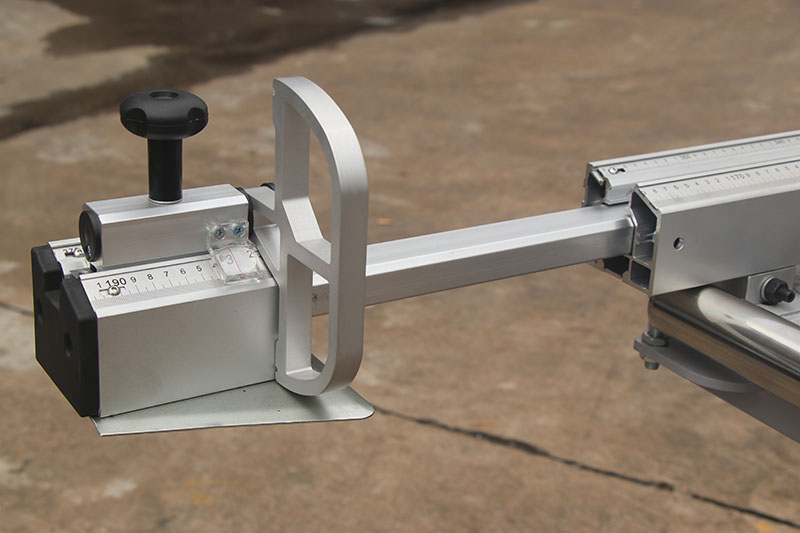

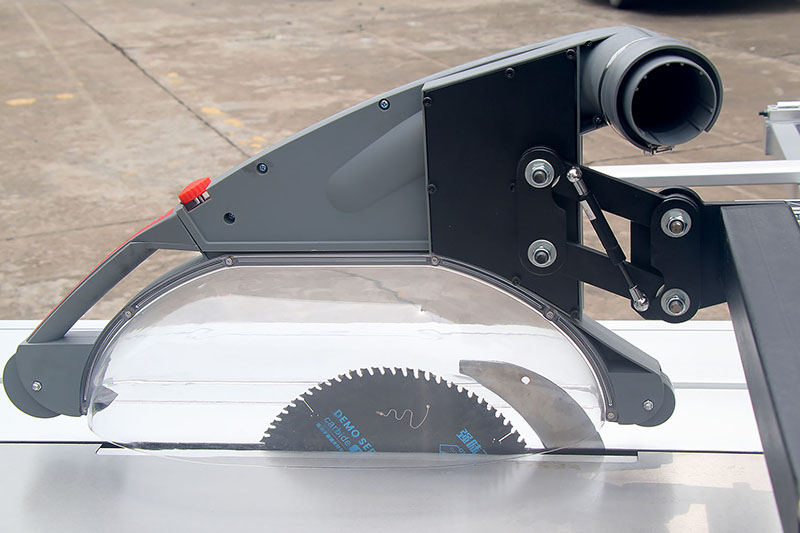

Any poisition quick stop overhead European dust collection hood, standard fitting 45 and 90 degree 2 covers	Professional big ruler, initial up to 1900mm, extension up to 3700mm, inch ruler(max 133inchs length) also available

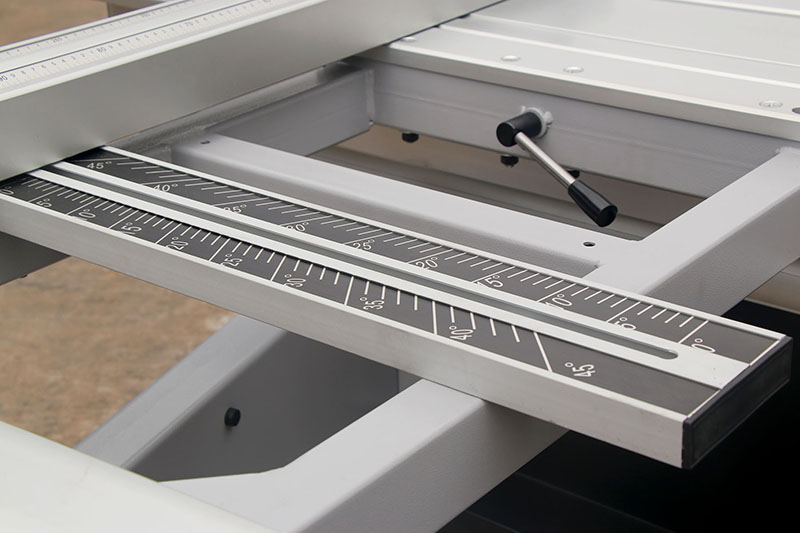

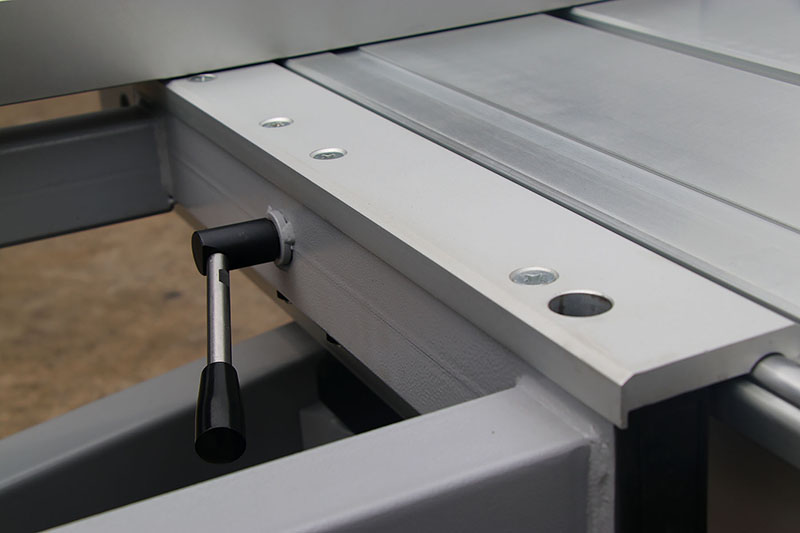

Side tables can be slide and quick lock with front and rear ruler installation hole, professional ruler micro adjustment base for precise 90 degree both on front or rear

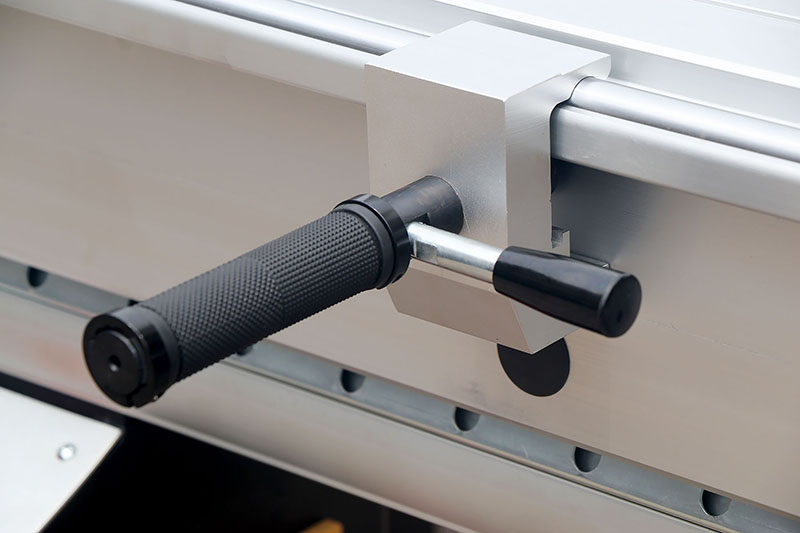

Any position quick lock table handles for easy pushing sliding table	Standard fitting with safe smaller material pusher

Flexible optional fitting of ENG M280

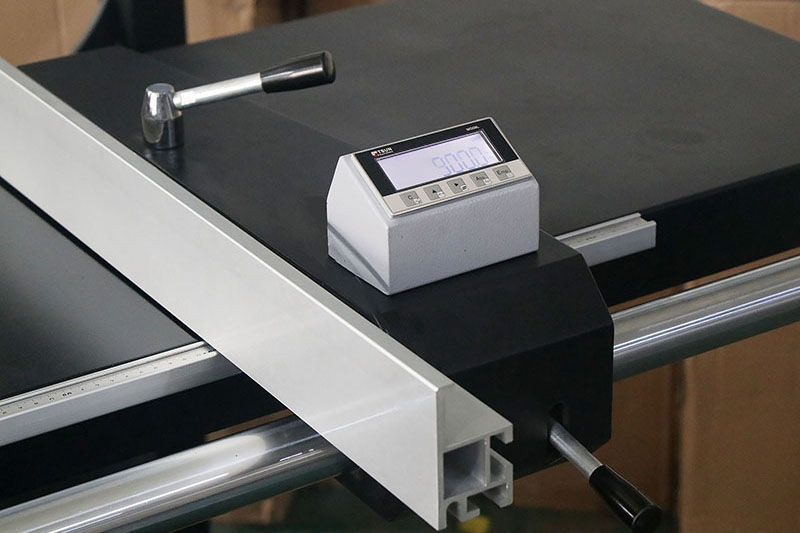

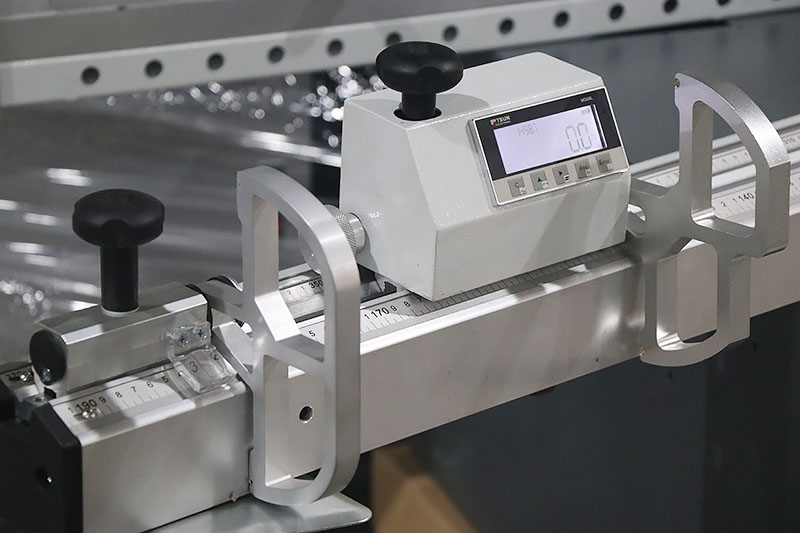

Digital ruler a never data lose design optional with micro adjust function	Digital rip fence for highest precision, optional rip fence fold back

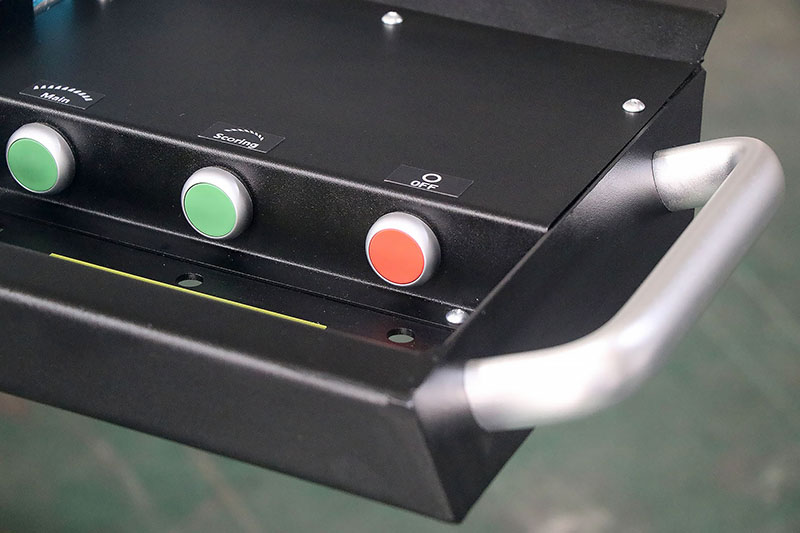

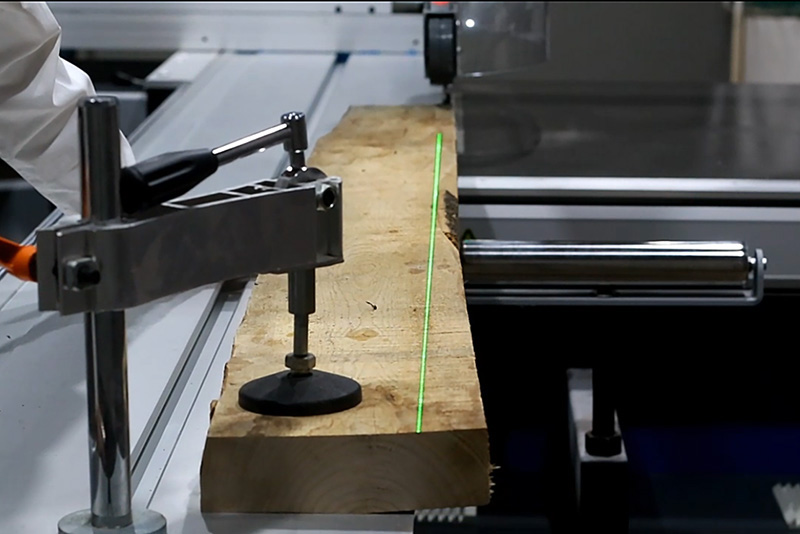

Optional laser function for solid wood cutting also act as a safe line which tells you where the blade is	Optional sliding table end remote control, start main and scoring blade from handle of sliding table
Optional ruler angle function with easy quick lock at any digree	Optional main motor soft start and 4 seconds quick stop, speed adjustable or even permanent magnetic motor

Parameters

ENGINEER M280 sliding table saw Catalogue download
