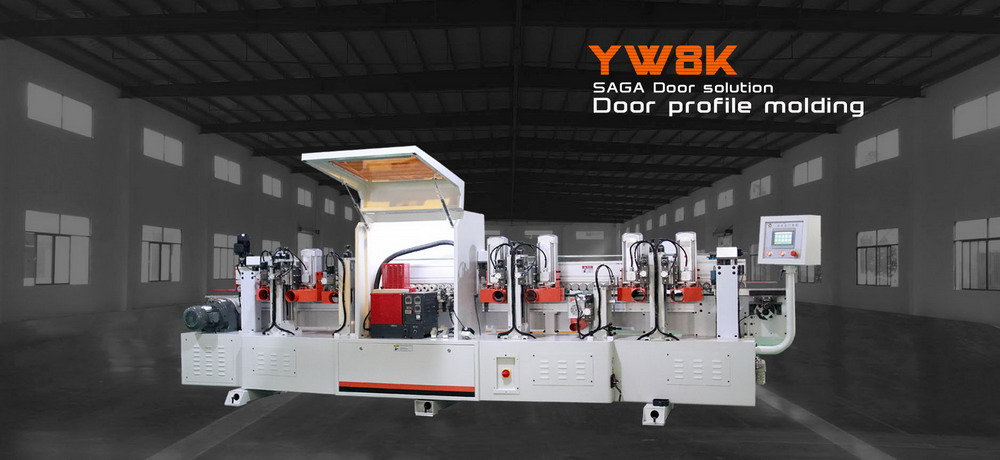

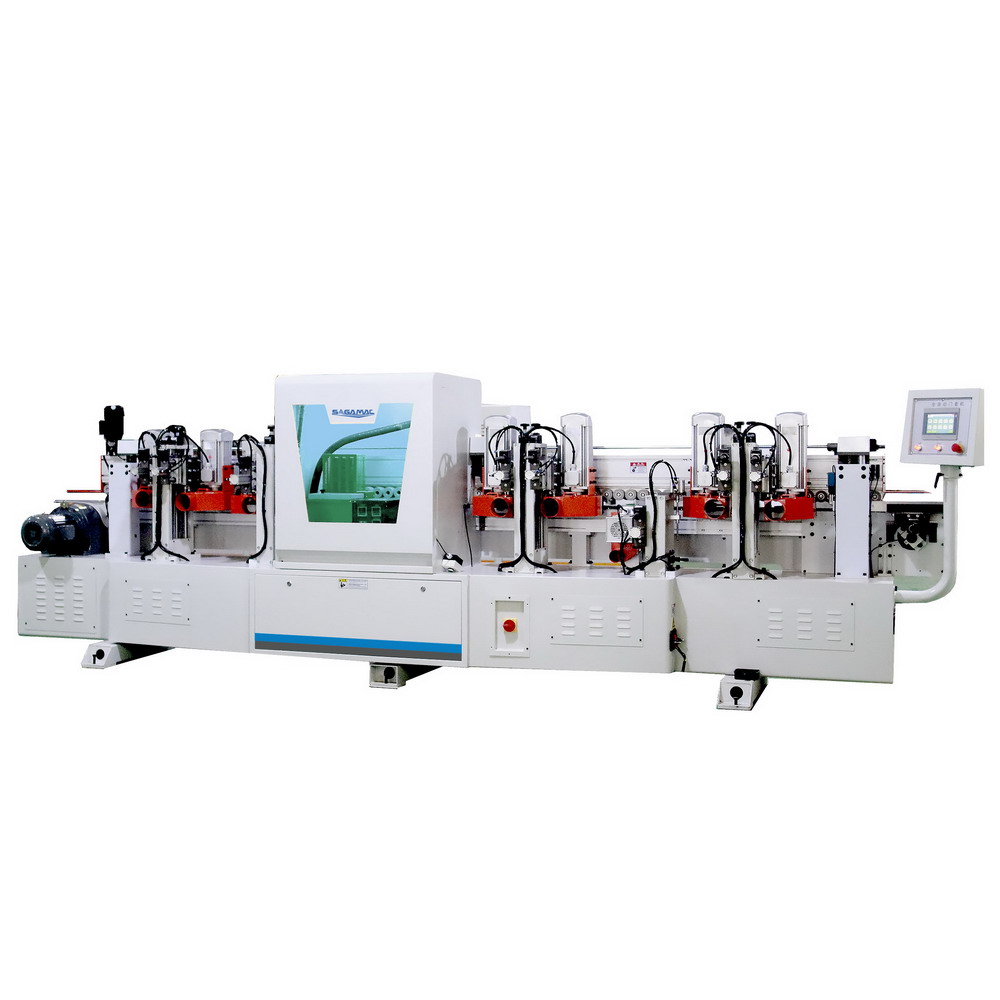

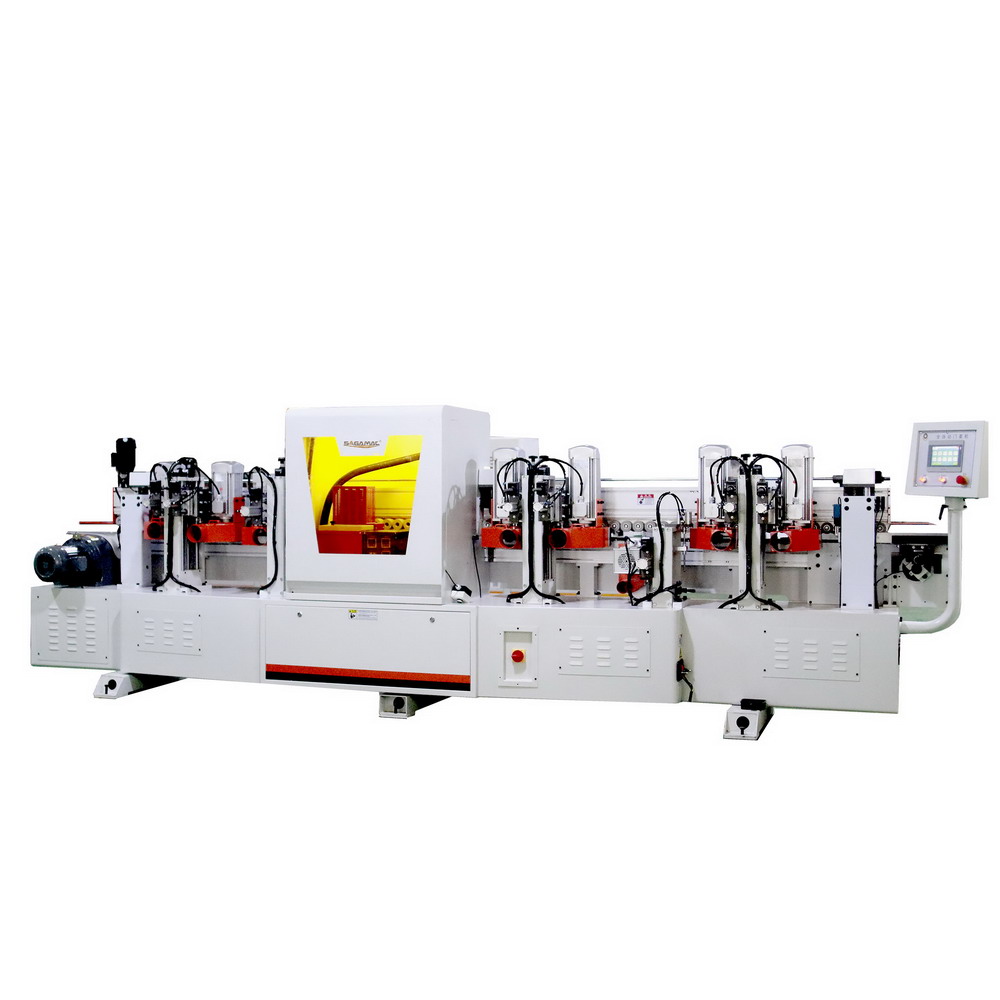

Specialized machine suitable for door profile moulding works, It combine the function of Grooving moulding and laminated function, and even can add edge banding function, makes is so flexible and easy to do door profile.
Is a specialized machine suitable for door profile moulding works, it greatly save process for laminated or veneer door profile making,
It combine the function of Grooving moulding and laminated function, and even can add edge banding function, makes is so flexible
and easy to do door profile. the profile grooving in the past most done by moulder or four side moulder, but after moulding, there is
an extra process to do surface wrapping again, YW8K use finish 2 side laminated, and 2 edge banded material, to do the groove and
used the wood pieces which been cut off to laminated to the grooved wood pieces, and after process, it will becomes a finish products.
Easy to set, perfect finish, less process, less equipment invest, it is spirit of YW8K.
|
|
|
|
The material is intergrate material with 1 or 2 surface laminated, no need to use other material |

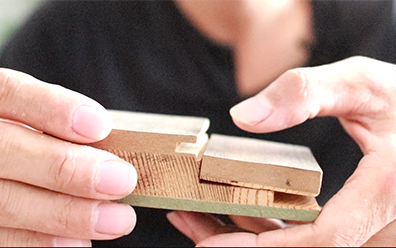

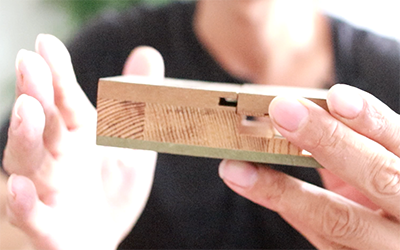

Machine cut off 1 piece of material off and laminated it back to the work piece to make a finish products |
|
|
|
|

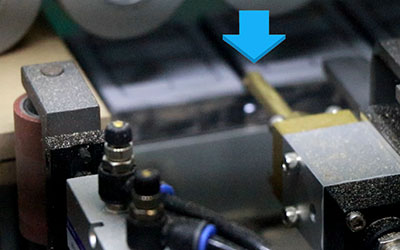

There is a glue spreading head to spread glue |

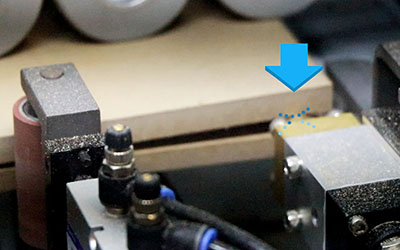

When material come, the glue head start to spread glue |
|
|
|
|

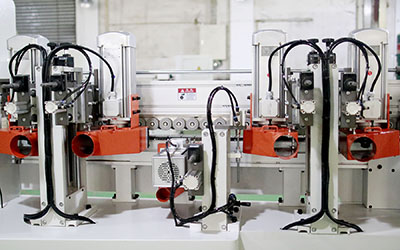

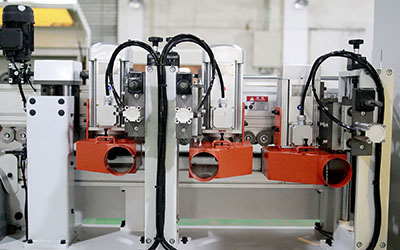

High precision high speed motor used for grooving or cutting work |
|
|
|
|
|

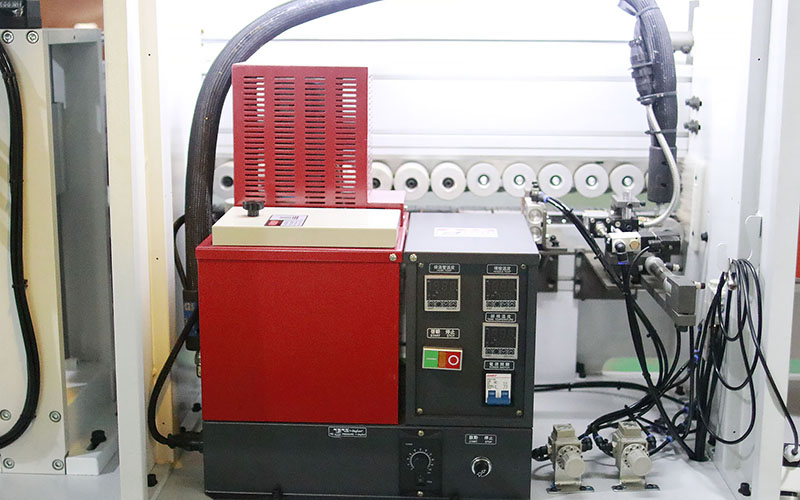

A professional glue melting and pumping system is used for glue spreading |
|
|
|
|
|

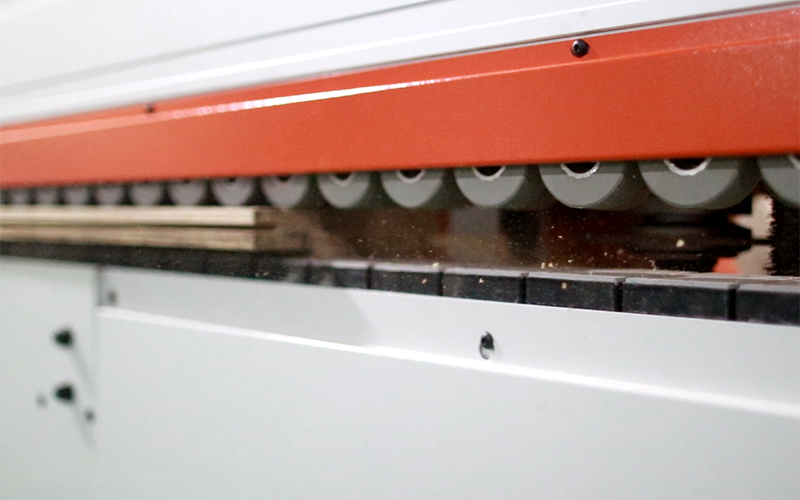

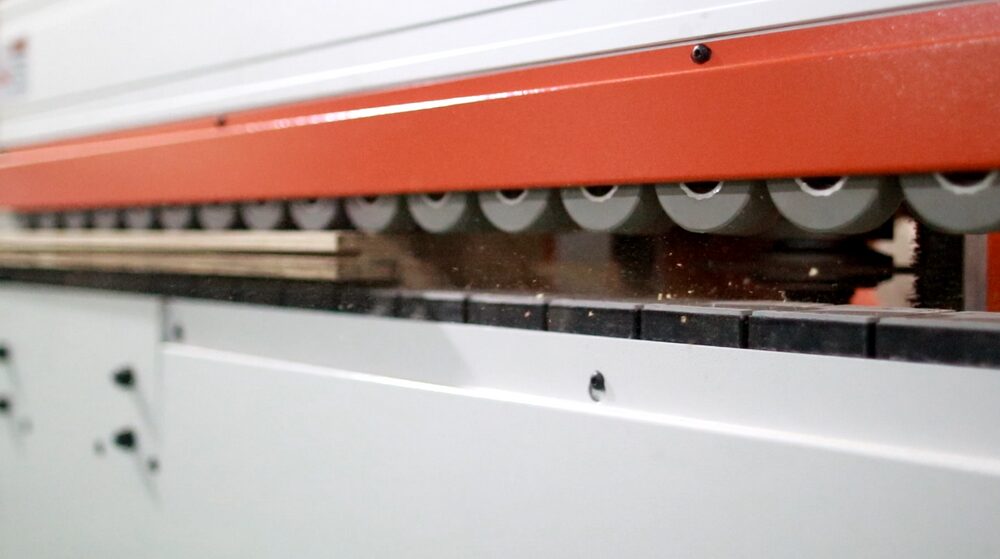

Bottom chain feeding plus top multi pressure roller for precise and stable feeding of material |
|
|
|
|
|

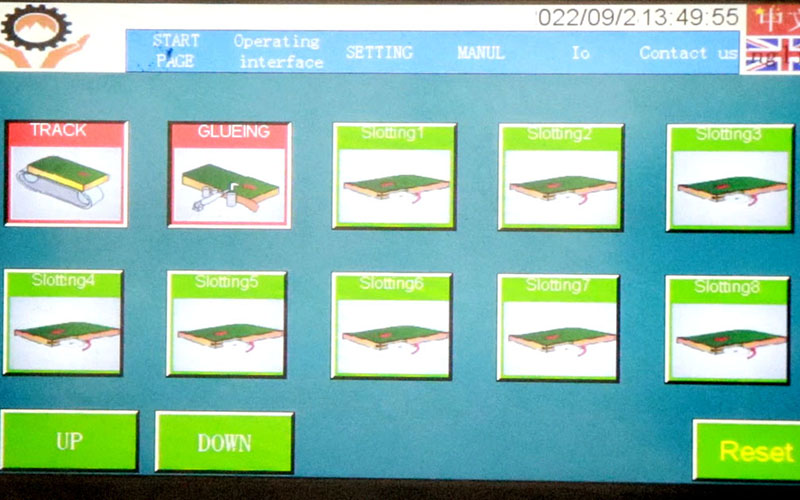

PLC touching screen makes control of panel so easy even for new users |
|
| Power supply | 380V 50Hz 3Phase or customized |
| Total power | 41kW=54.6hp |
| Process thickness | 10-60mm |
| Processing width | >=120mm |
| Process length | >=700mm |
| Feeding speed | 11.5m/min |
| Speed for high speed spindle | 12000rpm |
| Dust collection | 100mm |
| Overall size | 5400*850*1600mm |
| Weight | 1600Kges |
