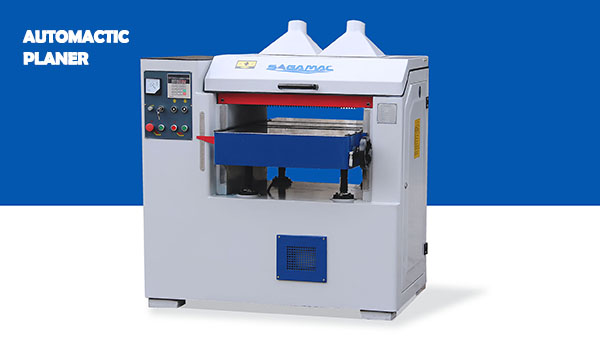

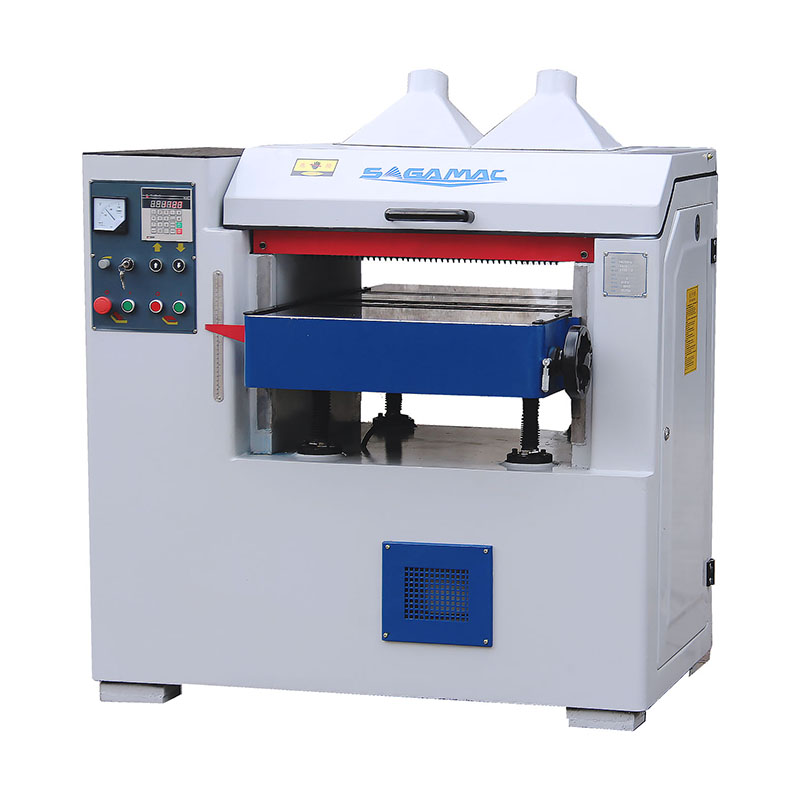

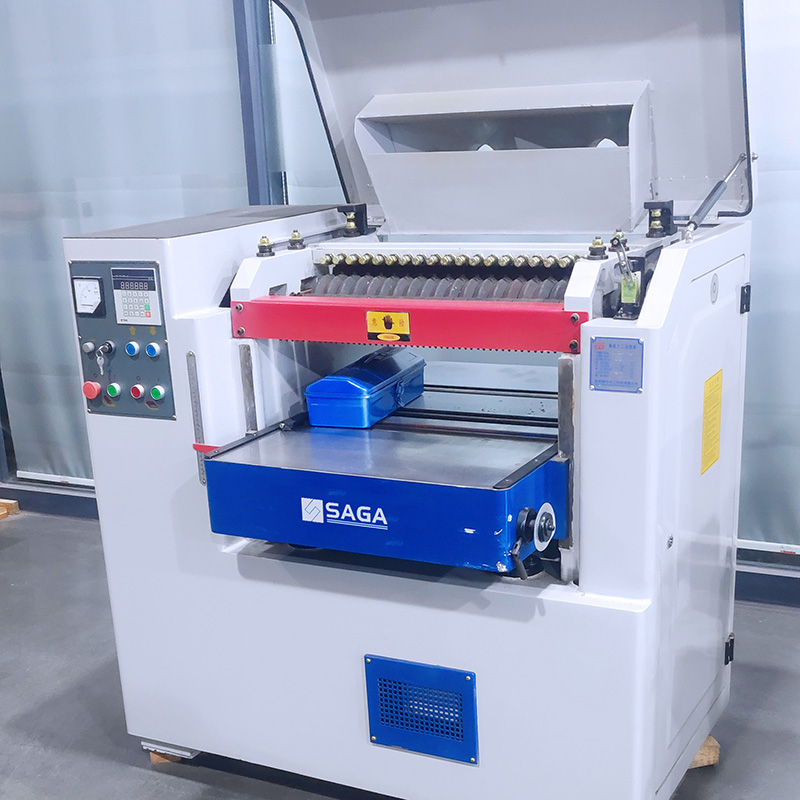

MBZ 500mm and 630mm Industrial professional thickness planer with automatic thickness setting, variable feeding speed Heavy duty 4 cylinder poles for super stable and precision
If there is a standards for a ultimate smooth precision planing, SAGA MBZ600 may meets all its standards and it also may be the best planer among the Industrial heavy duty grade in the world.
With super precision magnetic scale set at front control panel automatically, forever say bye to tedious manual setting and error for thickness due to the manual reading of measure scale, and gives a very precise thickness reference of later machining work, especially for CNC machining which emphasis on precision more.
Heavy duty structure makes machine run so stable and quiet, helical spiral cutters is born for a super smooth planing, hard chrome feeding table make feeding so smooth that you may never experience on a traditional planer also it makes your machine table life-long unti-rust. Speed variable adjustment is a standard fitting on every high class planer, and sure with MBZ600, with feeding speed from 6-18m/min.
MBZ600, may meets all your expectation about a high performance planer, and you are welcomed to experience a high smooth soft planing.
|
|
|
|

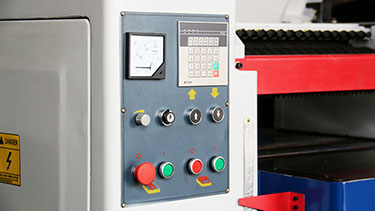

Automatic thickness setting apply high precision magnetic scale tech, speed variable to meet more flexible planing work |

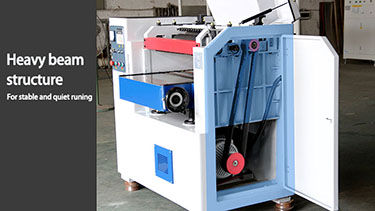

Heavy duty strong beam is the key point for a industrial planer which reduce the vibration and eable a quiet but powerful planing work |
|
|
|
|

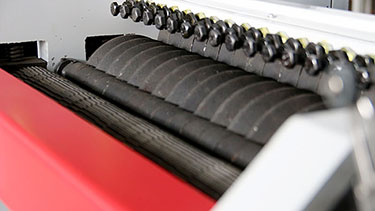

Heavy feeding and unti jumping system makes feeding stableto eliminate the problem of defect planing |

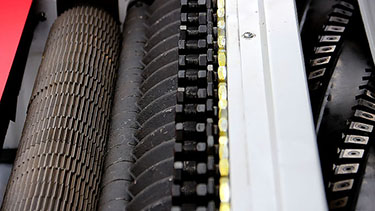

SAGA silent power black harden helical spiral cutters for very quiet runningplaning finish effect is same with 120# sanding effect |
|
|
|
|
Big width planing precise and smooth is a challenge for light duty planer to MBZ it is piece of cake. |

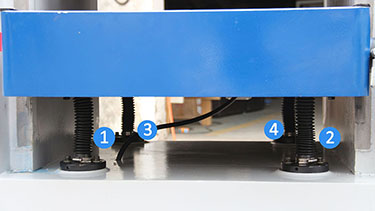

4 cylinder poles is standard fitting for a heavy duty industrial planer, which gives stable support to the feeding table, further ensure a precise thicknes planing workingP |
| Max planing width | 630mm |
| Max planing thickness | 225mm |
| Min planing thickness | 5mm |
| Min planing length | 225mm |
| Feeding speed | 6-18m/min |
| Speed of spindle | 5000r/min |
| Power | 11kW |
| Weight | 1050Kgs |
