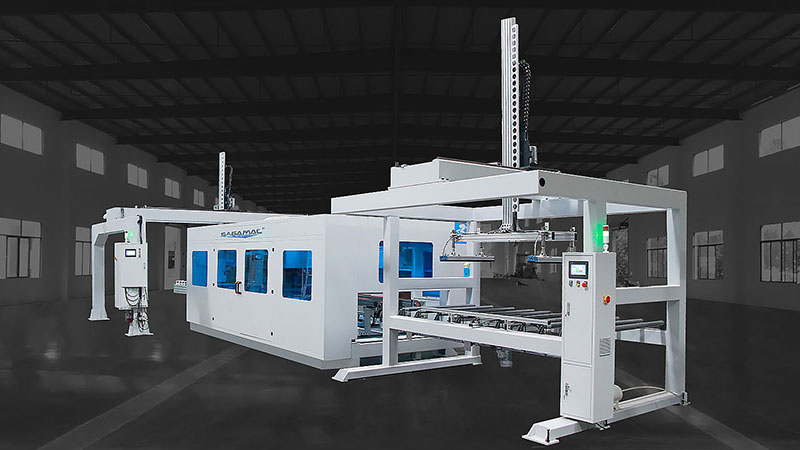

M4G2 Door 4 edge cutting machine

Is SAGA’s advanced door production equipments suitable for bulk door production enterprise, high efficiency up to 400 doors per day, automatic gantry robot lifter makes it zero labor cost for this process. Belt conveyor feeding, automatic centering function, vacuum system to fix the door, all fitting make it most advanced door cutting machine cnc center. 4 cutting system nearly 2 times faster than 3 blade model, each cutting system combine of main cutting blade and scoring blade effectively avoid edge break. Whole machine full shield makes it extremely safe and dust free working.

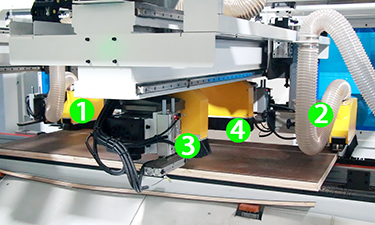

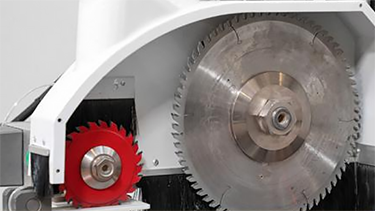

4 cutting unit 2 on longitude 2 for cross cutting, greatly reduce the repeat work error and bring 2 times faster efficiency than 3 units	Combination of big main cutting blade and scoring blade, effectively prevent edge break and gives a very smooth surface for latter process

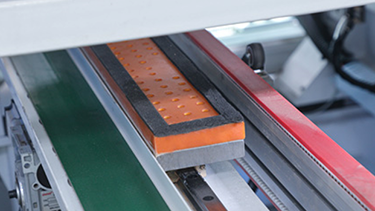

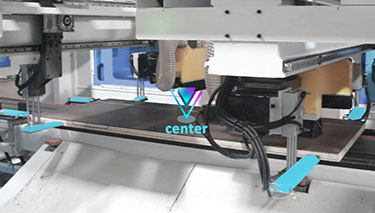

Automatic centring push the door to the center of width and length, so cutting is accounted from center	Vacuum table for fix the door tight to the position and support a stable and precise cutting

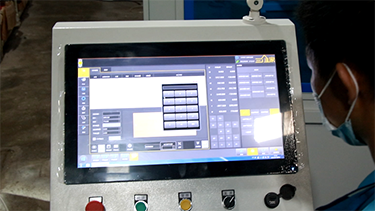

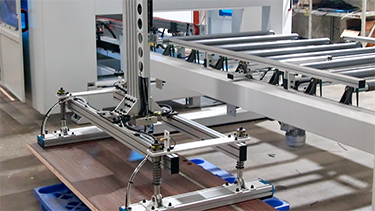

Professional CNC programe enable a flexible and versatile cutting model	Vacuum gantry lifting system for fully automatic feeding and outlet makes this process 0 labor work

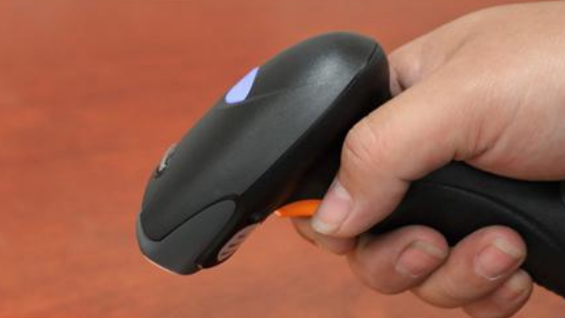

  Fully automatic scanning connect acceptable for next generation production

Parameters

Power supply	380V 3Phase 50H or customized
Fitting	4 cutting system with scoring blade
Door transport	Automatic covenyor belt feeding
Feeding and outlet	Gantry lifting robot or power feeding roller table
Working width	350-1100mm
Working length	2500mm max
Max working thickness	65mm
Main saw power	7.5kW*4
Scoring saw power	1.5kW*4
Program	Windows 7
Installation power	48.5kW
Air pressure	0.8mpa
Dust collection	120mm
Weight of main machine	3300kgs
Overall size	5100*2914*2100mm
