Industrial heavy duty thickness planer 500-630mm planing width, with spiral cutter block
Is SAGA ’ s engineer grade planer featured with heavy duty, easy to control and setting, life long use and high precision. It is a classical model with whole solid cast iron structure and it is key point for a stable running of a planer with less vibration and running is so quiet and sound is beautiful.

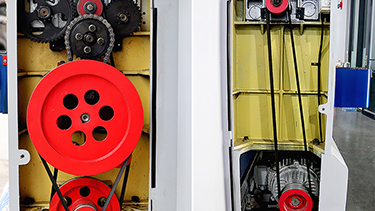

The mechanical system is highest precise process and very logic design plus a mirror effect grinding hard chrome treated table create a very smooth feeding, and heavy duty pressure feet plus a separate section feeding roller, makes feeding so powerful and greatly avoid the initial and final over planing. Raise and lower of feeding table is slight and fluent due to the high precision process of structure and guiding rail, certainly this also gives right and left very precise and uniform thickness planing.

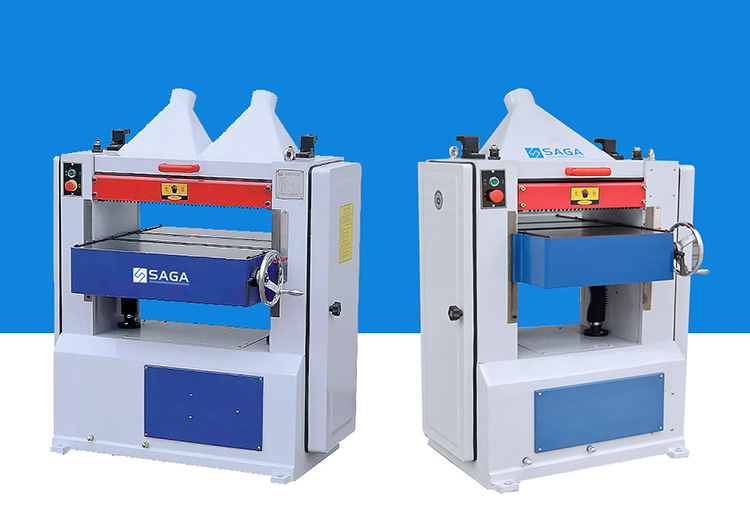

MB series got 104/105/106 3 different model which max planing width is 400/500/630mm, with SAGA MB series heavy duty industrial planer, you can get a so smooth planing which finish effect is even equal or better than 120# sanding work.
|
|
|
|

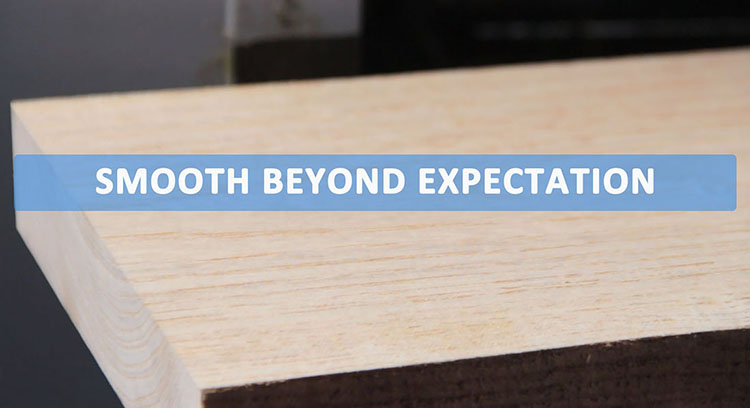

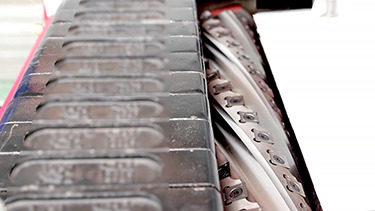

SAGA Silent power spiral cutters with highest precision makes planing so smooth and equal to 120# sanding effect |
The solid cast irion structure of whole machine is the key point why SAGA thickness planer running so quiet and stable |
|
|
|
|
Heavy duty cast iron fine grinding of feeding table makes feeding so smooth and easy |

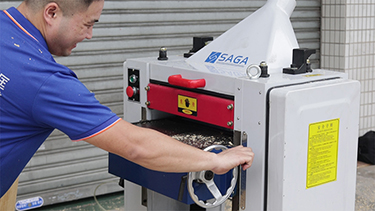

Very light thickness setting due to the high precision process of whole machine |
| Model | MB106 | MB105 |
| Max planing width | 630mm | 500mm |
| Planing thickness Max | 180mm | 180mm |
| Min planing thicknss | 5mm | 5mm |
| Min working length | 220mm | 220mm |
| Max planing amount | 5mm | 5mm |
| Spindle speed | 5500rpm | 5500rpm |
| Feeding speed | 9/6.5m/min | 9/6.5m/min |
| power | 7.5kW | 5.5kW |
| weight | 550kgs | 460kgs |
