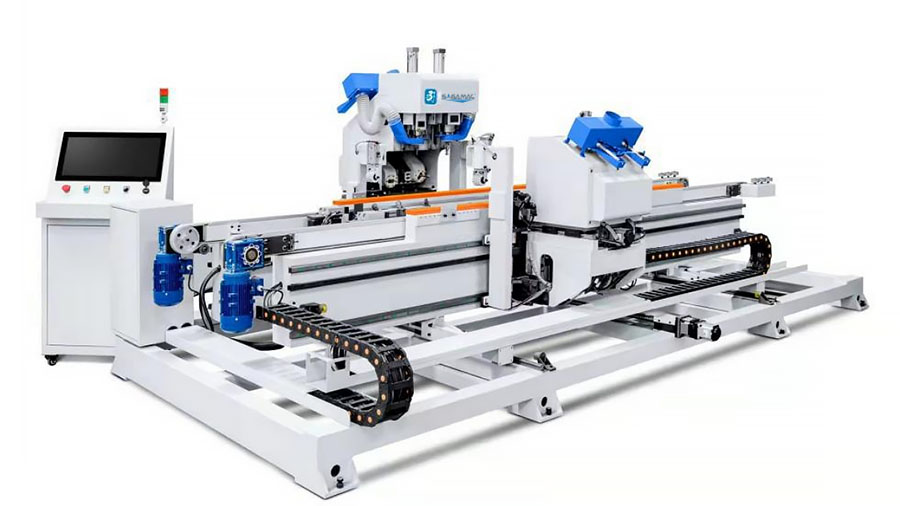

M8B fully automatic door lock and hinge machine is double side processing pass through type feeding suitable for large door enterprise for highest efficiency and great precision
Categories: Door and automation brand 3

|
|
|
|

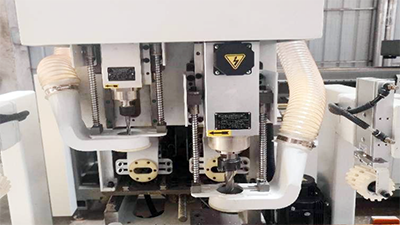

Professional highe speed spindle |
parallel conveyor feeding system |
|
|
|
|

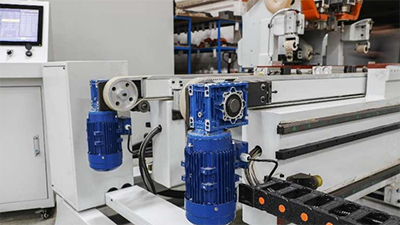

Heavy duty star start reduder |

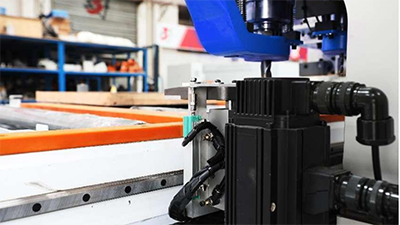

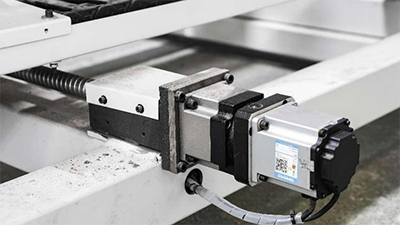

Servo motor for width adjusting work |
|
|
|
|

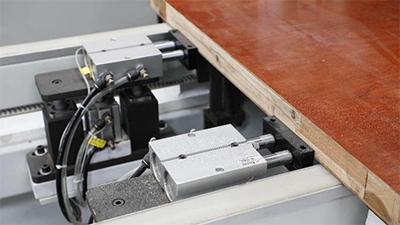

Longitude and width positioning system, when the material come to cylinder, after stopped, cylinder will push back to processing position |

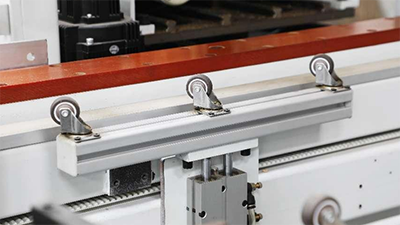

Easy transport rollers with rubber coating, for easy move of door and well protect the surface of door |
|
|
|
|

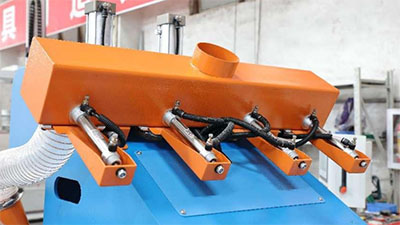

Professional designed centeral dust collection for very efficient dust collection |

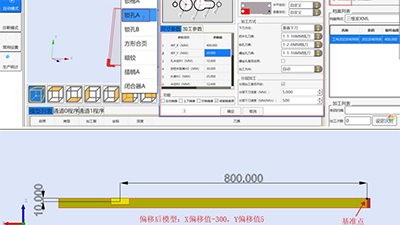

Professional format programe very easy to set and control even for new users |


| Power supply | 380V 3Phase 50Hz or customized |
| Working length | 1800-2500mm |
| Working width | 500-1100mm |
| Working thickness | 35-65mm |
| Processing speed | 2 mintues or less |
| Feeding | Conveyor belt |
| Milling spindle | 18000rpm 6kW |
| Drilling spindle | 18000rpm 2.2kW |
| Total power | 36kW |
| Air supply | 0.6Mpa 8mm hose |
| Dust collection | 100mm |
| Weight of machine machine | 2460kgs |
| Overall size | 4200*2235*1690mm |
